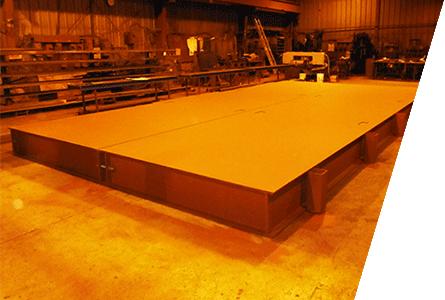

Portable Bridges

Recognized by the MNRF, these portable logging bridges are approved for use on low-volume crown land roads. Each bridge is shipped as two halves to be assembled on site and fastened with two galvanized rods through each end. Guard rail pockets are suitable for 6x6 pressure treated wood (or 8x8 upon request).

Available in 20, 30, 40 and 50' lengths

Bridge Specifications:

  • Welded on guardrail pockets
  • Double engineer stamped drawings
  • Lifting and pulling lugs
  • Environmentally friendly
  • Follows CAN/CSA-S6-06 standards
  • Ships in two sections (8’ each including guard rail pockets)
  • Bridge halves connected with 1-1/4" galvanized threaded rod
  • Plates provided to close all holes/gaps
  • Stock available in some lengths (30'/40')
  • Comes with one coat of shop primer
  • Made by CWB certified welders
